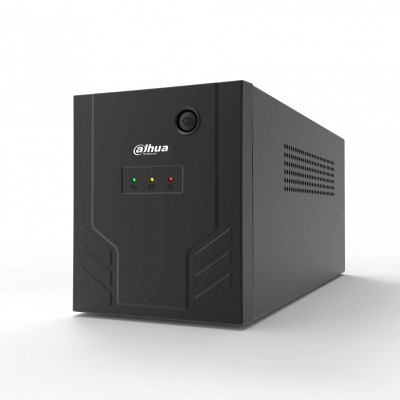

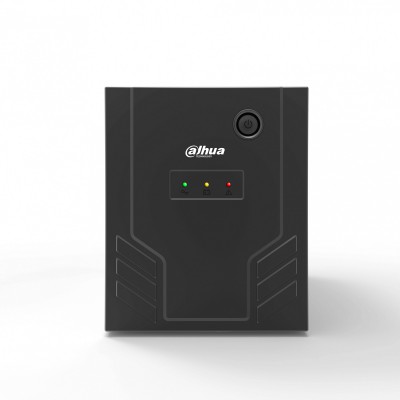

1500VA/900W Uninterruptible Power Supply

29,000 Vt

For bulk orders, please contact us for pricing.

  • Comes with a wide voltage input range of 170–280 VAC, and easily adapts to fluctuations and various grid environments.
  • Operates quietly for a serene environment.
  • Offers digital voltage stabilization and automatically adjusts the voltage.
  • Fast charging in just 4 hours.
  • Rapid switching of 4-8 milliseconds.
  • Protects against overload, short circuit, overcharging, and over-discharge.
Category:
CAPACITY
Capacity 1500 VA, 900 W
INPUT
Input Voltage 170–280 VAC
Input Current 7.2 A
Rated Input Frequency 50/60 Hz
Power Factor ≥0.6
OUTPUT
Output Voltage 230 VAC by default
Output Current 6.9 A
Output Power 1500 VA, 900 W
Output Frequency 50/60Hz
Switch Time Typical 4 ms–8 ms
Output Wave AC Mode: Pure sine wave;
Battery Mode: Simulated sine wave
BATTERY
Built-in Battery Yes
Battery Type Lead-acid battery
Qty.of Battery 2 × 7Ah
Charging Current 1 A
Limited Charge Voltage 13.7 V/pcs
Charging Time 4H–6H to 90%
Max Travel Time on Full Battery 3 min
INDICATORS
Status Indicator Light Battery mode: Red light flashes once every 10 seconds
Mains power mode: Green light solid on
Fault mode: Red light solid on
ALARM
Alarm Indicator Battery Mode: Beeps once every 10 seconds;
Low Battery: Beeps once every second;
Overload: Beeps once every 0.5 seconds;
Battery Replacement: Beeps once every 2 seconds;
Fault: Beeps continuously
PROTECTION
Types of Protection Protects against overload, battery overcharge, and over-discharge
Overload Capacity AC Mode Overload: 110% + 20%/ – 10%. The UPS shuts down after 5 minutes and reports an overload fault;
AC Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault;
Battery Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault
PLUGS & SOCKETS
Input Plug European standard
Input Cable Length 1.2 m (3.94 ft)
Socket Standard European standard
Number of Output Sockets 4
OTHER
Built-in Fan Yes
Structure
Product Dimensions 374.5 mm × 138.4 mm × 166.5 mm (14.74″ × 5.45″ × 6.56″) (L × W × H)
Packaging Dimensions 470 mm × 195 mm × 255 mm (18.50″ × 7.68″ × 10.04″) (L × W × H)
Casing Material Plastic front cover + metal body
Appearance Color Black
Net Weight 11.4 kg (25.13 lb)
Gross Weight 11.8 kg (26.02 lb)
ENVIRONMENT
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 0%–90%, non-condensing
Storage Temperature –15 °C to +55 °C (+5 °F to +131 °F)
Storage Humidity 0%–90%, non-condensing
CERTIFICATIONS
Certifications CE
