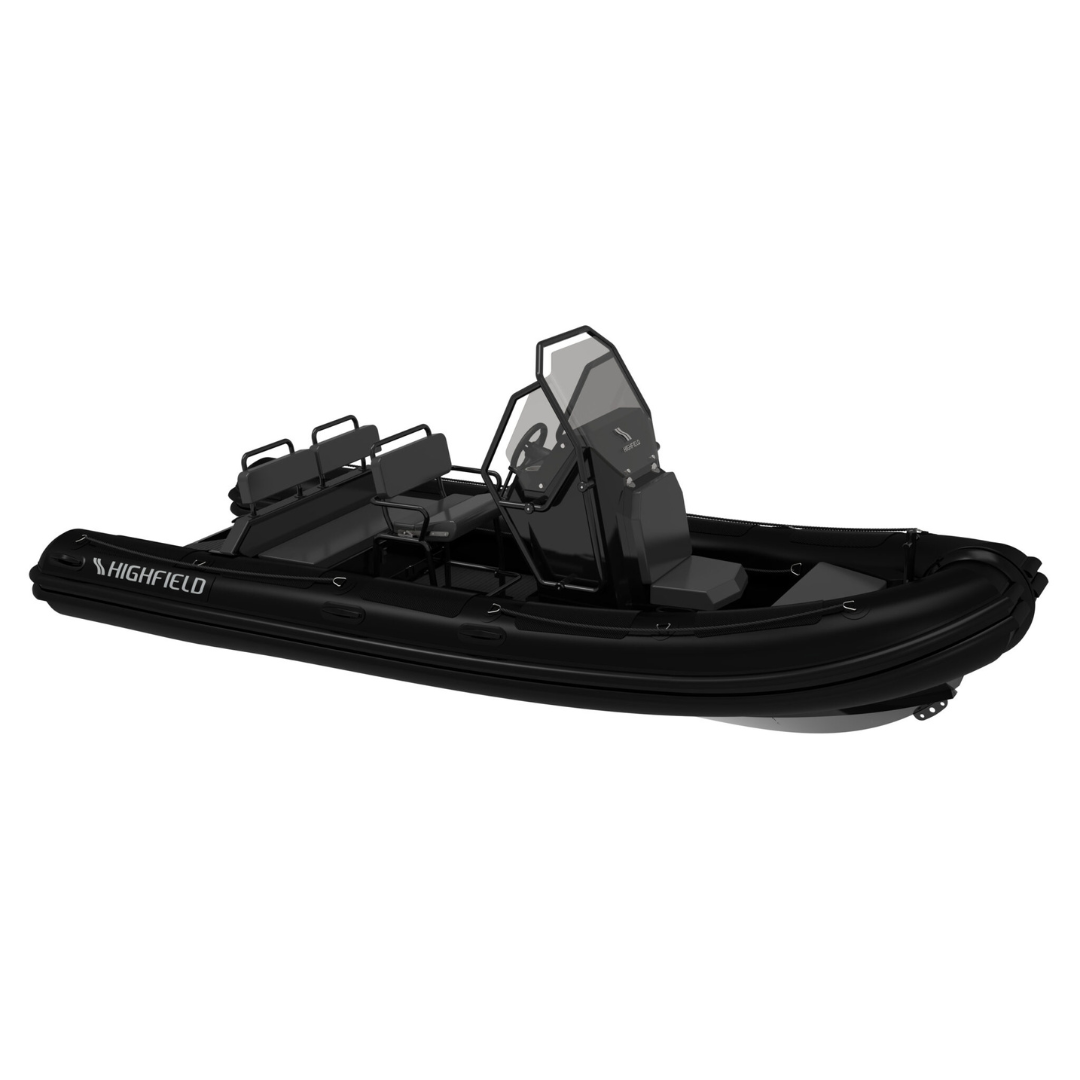

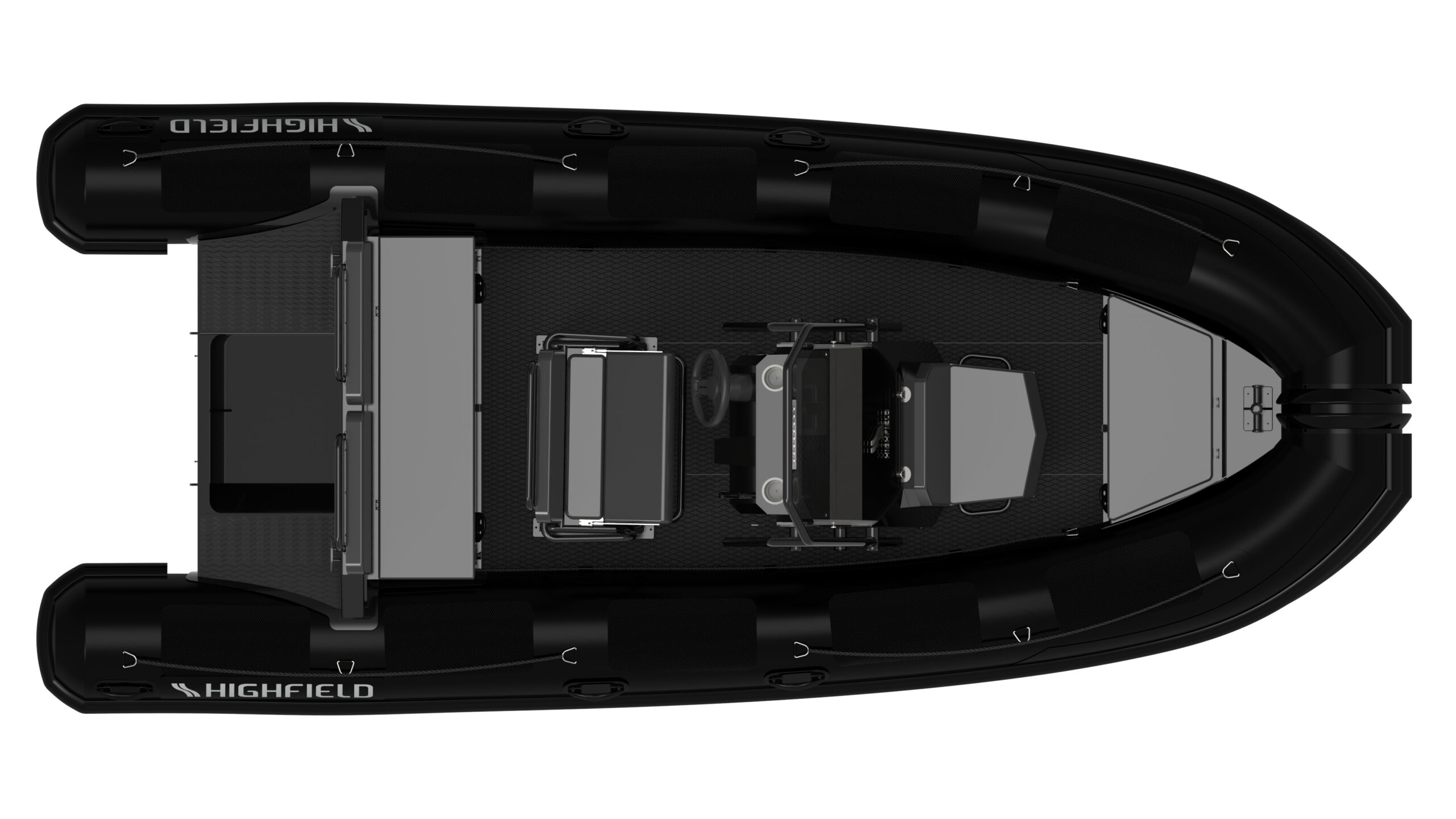

Patrol 540

This model gives the best of both worlds: a strong, spacious workhorse whilst still being easy to manoeuvre, slip & tow. The Patrol 540 is equally at home working in a commercial setting as it is as a rugged family cruiser.

Categories: ,

Specifications

  • Overall Length: 5.40m
  • Internal Length: 4.30m
  • Overall Width: 2.48m
  • Internal Width: 1.33m
  • Dead Rise: 24°
  • Tube Diameter: 52 cm
  • # of Air Chambers: 6
  • Maximum Load: 1375 kg
  • Maximum People: 12
  • Boat only Weight: 574kg*
  • Fuel Tank: 105l
  • Max HP: 115hp
  • Engine Shaft: XL Single
  • Design Category: C
  • Package size for boat (l x w x h) : 510 x 130 x 105cm

Standard Features

  • ORCA® Hypalon or PVC tube
  • Bow Cushion
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminum hull
  • Integrated transom supports
  • Self-draining deck
  • Steering wheel
  • Integrated under-deck fuel tank
  • Lifting points and towing eyes
  • Anti-slip deck
  • Heavy duty rubbing strake
  • Keel guard
  • Carbon dash
  • Electrical pack for console
  • Electrical pack for boat
  • Transom ladder
  • Bow cushion
  • Welded seams (PVC)
  • Highfield dry bag
  • Foot pump, oars, repair kit

Optional Equipment

  • Console & seat options
  • Suspension seat with shock
  • Roll Bar
  • Hydraulic Steering System
